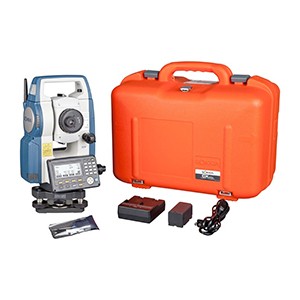

Specifications
General
Weight 12.3 lbs (5.6 kg)
Dimensions 7.5 in x 7.1 in x 13.7 in (191 mm x 181 mm x 348 mm)
Warranty 2-year manufacturer’s warranty
Protection Class IP66 (protected against access to hazardous parts, dust-tight; protected against powerful water jets and heavy seas)
Tripod Thread 5/8 x 11 in.
Auto Shut Off 7.5 in x 7.1 in x 13.7 in (191 mm x 181 mm x 348 mm)
Internal Memory 7.5 in x 7.1 in x 13.7 in (191 mm x 181 mm x 348 mm)
Tribrach fixed
Guide Light green and red LED, Working range: 4.3 ft to 492 ft (1.3 m to 150 m)

Angle Measurement
Measuring Method/Reading System coaxial phase shift measuring system
Minimum Reading 1-second/5-second
Accuracy 3-second

Distance Measurement
Unit of Measure (distance display) m/ft/in.
EDM Accuracy (Precision) reflectorless: (3 + 2ppm x D) mm; Reflective sheet: (3 + 2ppm x D) mm; SP/CP prism: (2 + 2ppm x D) mm
Minimum Reading 0.01 ft/ 1/8 in.

Tilt Sensor/Compensator
Range ±6 minutes
Type dual axis liquid tilt

Battery/Power
Power Source Li-ion rechargeable battery
Battery Life about 36 hours
Battery Life Alert yes
Voltage 7.2V

Optical Plummet
Image erect
Magnification 3x

Level
Circular Bubble Vial 10 min. per division/2mm
Electronic Level 6 arcseconds

Telescope
Length of Tube 6.7 in (171 mm)
Image erect
Diameter of Objective Lens (Aperture) 1.8 in (45 mm)
Magnification 30x
Field of View 1 degree 30 arcmin
Resolving Power 2.5 arcmin
Minimum Focus Distance 4.3 ft (1.3 m)
Reticle Illumination 5 brightness levels
Reflectorless yes

Display and Keypad
Type LCD graphic display
Sides dual
Keys 25
Backlight yes
Pixels 192 x 80

Temperature
Operating -4ºF to 122ºF (-20ºC to +50ºC)
Storage -4ºF to 122ºF (-20ºC to +50ºC)

Applications
Surveying and Construction yes
Mapping and GIS (geographic information systems) yes
Utilities yes
Environment Studies yes
Geomarking yes
Archaeology yes
Accident Reconstruction yes

Measurement Range (under fair weather conditions)
Single Prism 4.3 ft to 13,120 ft (1.3mto 4,000m)
Triple Prism up to 16,400 ft (5,000m)
No Prism 1.0 ft to 1,640 ft (0.3m to 500m)
Mini Prism CP01:8,200ft (1.3m to 2,500m); OR1PA:1,640ft (1.3m to 500m)
Reflector Sheet 4.3ft to 1,640 ft (1.3m to 500m)

Functions
Coordinate Measurement Point yes
Angle and Distance Stake Out yes
Stake Out Line yes
Offsets yes
Missing Line yes
Remote Elevation yes
Resection yes
Area Calculation yes

Measurement Time
Fine 0.9s (initial 1.7s)
Rapid 0.7s (initial 1.4s)
Tracking 0.3 s (initial 1.4s)

Laser Plummet
Accuracy 1 mm or less
Class Class 2 laser
Wavelength 635nm±10nm

Laser Pointer
Class Coaxial red laser using EDM beam

Interface
Bluetooth communication range: up to 980 ft (300 m)
USB 8 GB USB memory stick and USB device port
Pin Port RS232C
