TELESCOPE
Effective diameter of objective: 1.77 in (45 mm)
Magnification: 30x
Image: erect
Field of view: 1°20′ (2.3ft @ 100 ft / 2.3m @ 100 m)
Minimum focusing distance: 2.3 ft (0.7 m)
Stadia multiplier constant: 100
Stadia additive constant: 0
Reticle illuminator: provided
ANGLE MEASUREMENT

Reading system: photoelectric incremental encoder
Circle diameter: 3.1 in (79 mm)
Unit of reading: degree / gon / mil
Minimum digital reading¹: 10/20″, 2/5 mgon, 0.05/0.1 mil
Accuracy (DIN 18723) 10″ / 3 mgon
DISPLAY/KEYPAD
Front

Type:dot-matrix LCD (20 characters x 2 lines)
Backlight:1-level illumination
Keypad: 5 buttons
OPTICAL PLUMMET

Magnification: 2.2x
Field of view: 5°
Focus range: 4.3 ft (1.3 m) fixed
LEVEL SENSITIVITY

Plate level: 60” / 2 mm
Circular level: 10′ / 2 mm
LEVELING BASE

Type: detachable
AMBIENT TEMPERATURE RANGE -4 TO 122 °F (-20 to 50 C)
ENVIRONMENTAL RATING IP54
DIMENSIONS

Instrument: 6.0 x 6.8 x 13.1 in (153.5 x 172 x 334 mm)
WEIGHT

Instrument: 9.8 lbs (4.5 kg)
Carrying case: 5.4 lbs (2.5 kg)
POWER SUPPLY

Battery type: 1.5V alkaline AA x 6
Continuous operating time (at 68 °F / 20C) 48 hrs

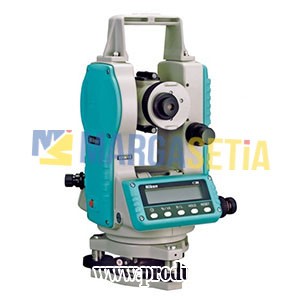

Nikon NE-100
Kelengkapan :
1 x Unit Nikon NE-100
1 x Alumunium Tripod
1 x Levelling staff  3 Meter
